Champion 3400 Extended Run Time Fuel Kit

$277.00

Includes free shipping to all 50 States

developed by pinellas

This kit will connect your Champion 3400 or 3500 to any size remote fuel tank you chose.

To ensure your complete satisfaction, please read the full product description below before placing your order.

5 in stock

Description

Our Champion 3400 Extended Run Time Fuel Kit is the safest way to extend the run time of your generator.

Why the Pinellas Power Products Extended Run Fuel System is better and safer than a through the cap system
Installation Instruction Video Fine Tuning and Troubleshooting
Champion 3400 Owner’s Manual

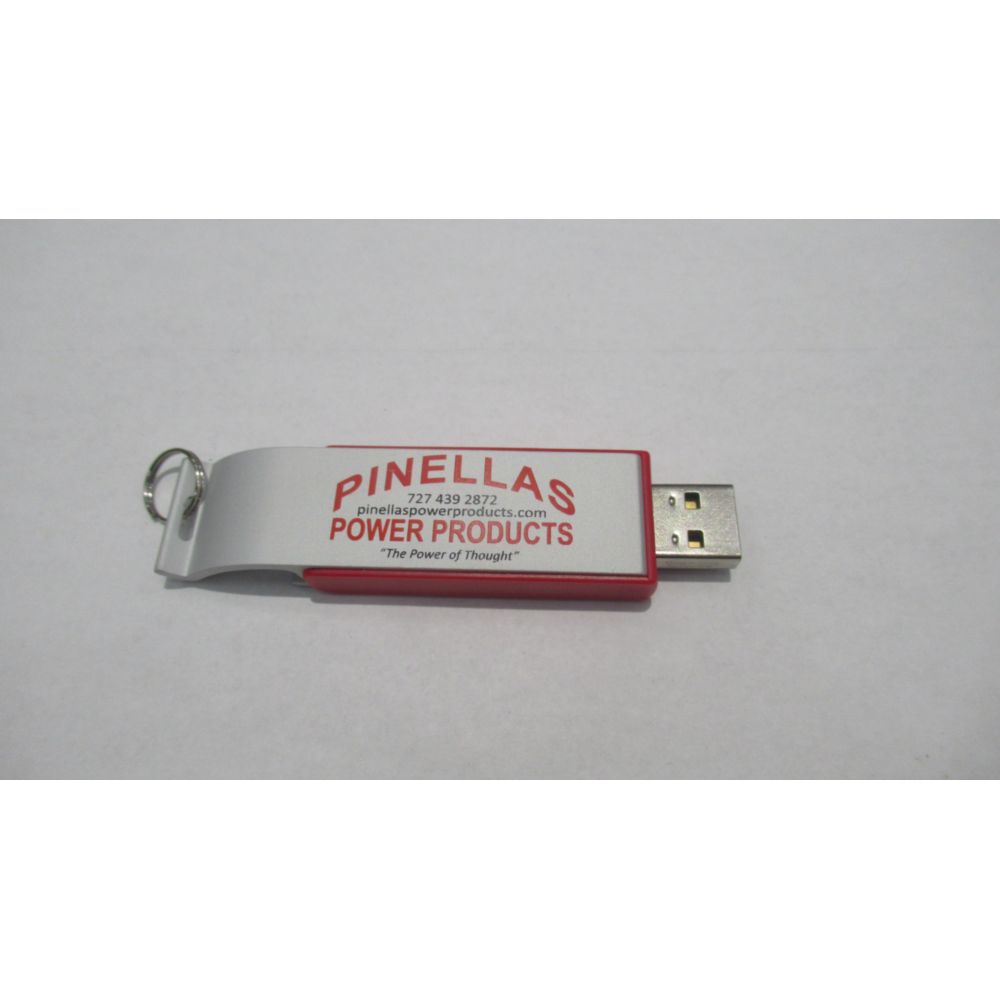

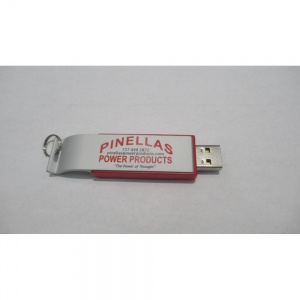

All installation instructions for all Pinellas Power Products kits are in an easy to follow step by step video, on a (USB flash-drive) included in each kit. Please take a moment to watch the product videos above to see all the features this product has to offer.

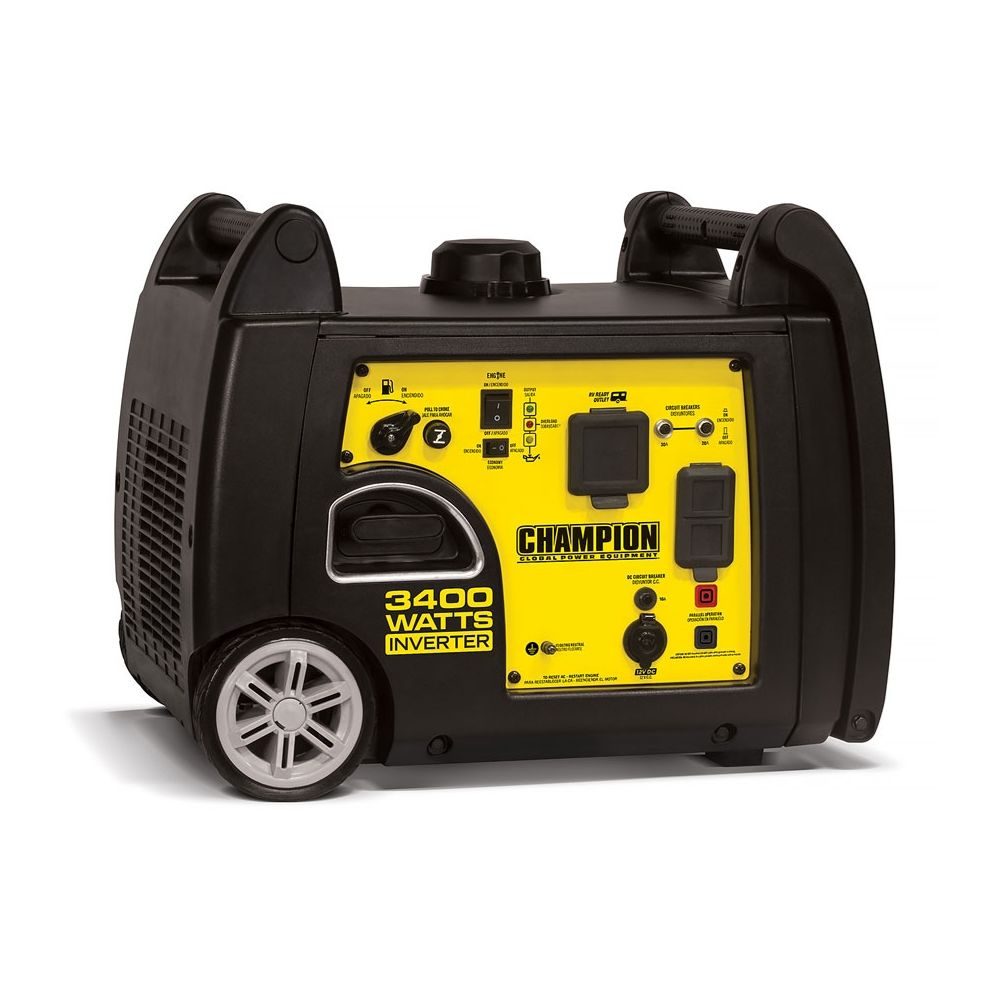

Our Champion 3400 Extended Run Time Fuel Kit was specifically developed to work correctly with the Champion 3400 and its sister, the Champion 3100 Watt inverter generators. It is not a through the cap, one size fits all, or a cheap gravity feed system. Our kits use an internal fuel pump included in the kit to transfer fuel so the remote tank does not need to be higher than the generator to work correctly. Simply place the remote tank on the ground next to the generator then connect the fuel hose and you are all set. It is very important that you use only the components supplied in the kit, do not mix and match with locally improvised items due to the fact that they may not be 100% compatible and therefore inhibit performance of the kit. We do our best to select the highest quality components for our kits, for example we tested several different brands of prime ball hose before we chose the Yamaha hose due to the fact that it outlast the other brands and it stays more flexible in cold temperatures.

Convenience
You will never have to shut down your generator to refuel again. Our fuel transfer system is fully automatic and uses a vacuum type fuel pump so it can be used safely while unattended. Our Champion 3400 Extended Run Time Fuel Kit is designed to alternate from one tank to the next while the generator is still running. Our kit will allow you to alternate between as many tanks of any size you choose. Based on manufacturer fuel consumption claims with a 6 gallon fuel tank you can run up to 13 hours at full load or 26 hours at ½ load before alternating to the next fuel tank.

Safety
You will never have to risk personal injury again pouring gasoline into a hot generator. With our REMOTE AUXILIARY FUEL TANK SYSTEM you can just switch to a remote fuel supply more safely at a distance of up to 10 feet away from this generator.

Compatibility
This product has been validated for use on gasoline versions of this generator only. It is not recommended for use on propane or dual fuel versions of this generator.

We Recommend The fuel tank itself is not included in this kit due to the fact that it seems no two customers need the exact same size fuel tank. Below is a link that may help you find the proper sized fuel tank for your needs. Due to quality control issues with many of the different brands of fuel tanks, I recommend using the Flo N’ Go fuel caddy as a fuel tank. Please note, the fuel caddy will have to be standing upright when you are running the generator, but it can be laid flat for transporting or storage. If you wish to use this fuel caddy as a remote fuel tank you will need to get hose clamps and a 1/2 hose barb to 1/4 FIP adaptor as shown in the fuel caddy video. For more info on the quality control issues with the different brands of tanks please watch the fine tuning and trouble shooting video.

How to use A Fuel Caddy for a Remote Tank Moeller fuel tanks »

Please click on the Product Details tab just below the photos for full technical details.

Please take a look at our other products for the Champion 3400.

Product Details

  • This Kit works with Champion generators using the 192cc engine (3400, 3500 and 3600).
  • You can still run your generator off the stock fuel tank with this kit installed if you choose to do so.
  • Shipping weight 4 pounds.
  • Ships the same day it was ordered on orders received before 3:30 PM EST.
  • Quantity shown above the add to cart button is the exact quantity in stock right this second.
  • We ship world wide.
  • This kit will connect your generator to any size remote fuel tank you choose.
  • This kit includes everything needed except the fuel tank itself, kits contain additional items not shown in photo.
  • Tank sold separately due to the fact that many people need different size tanks.

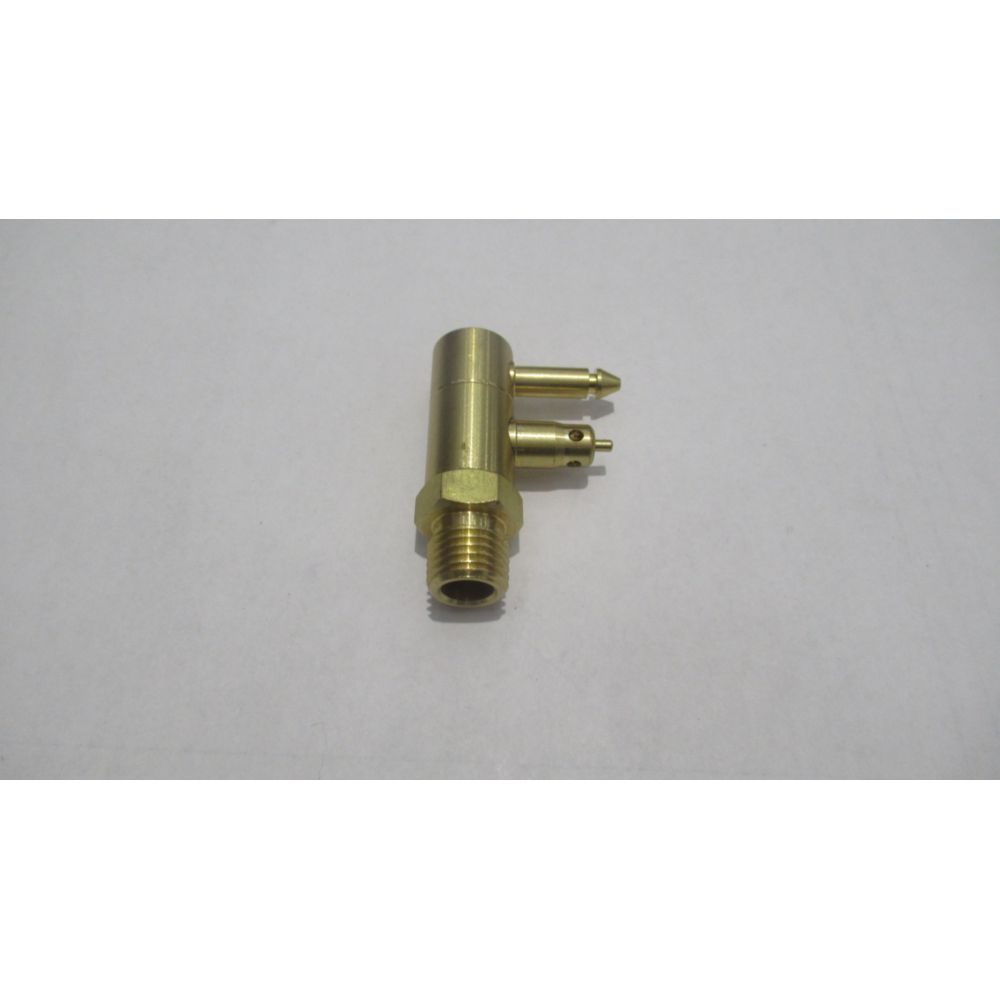

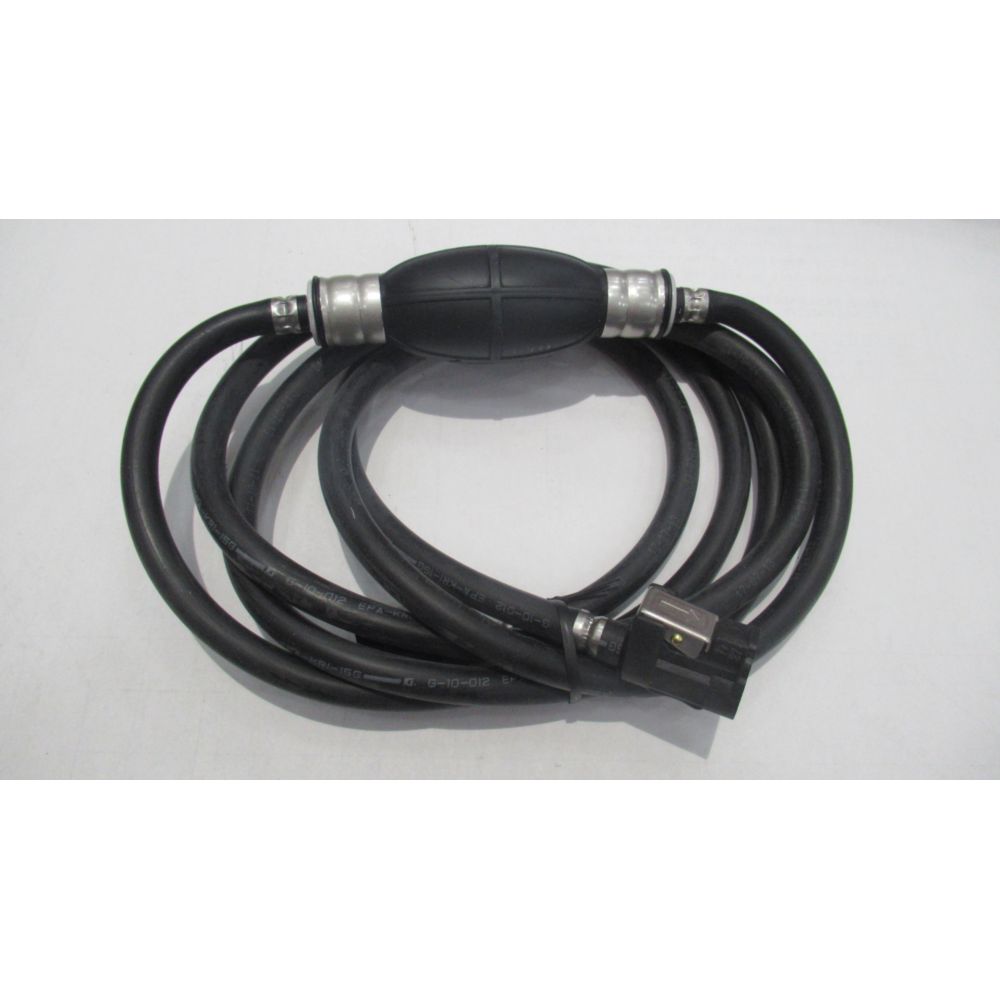

  • This kit uses a Yamaha style Marine fuel hose and quick disconnects.

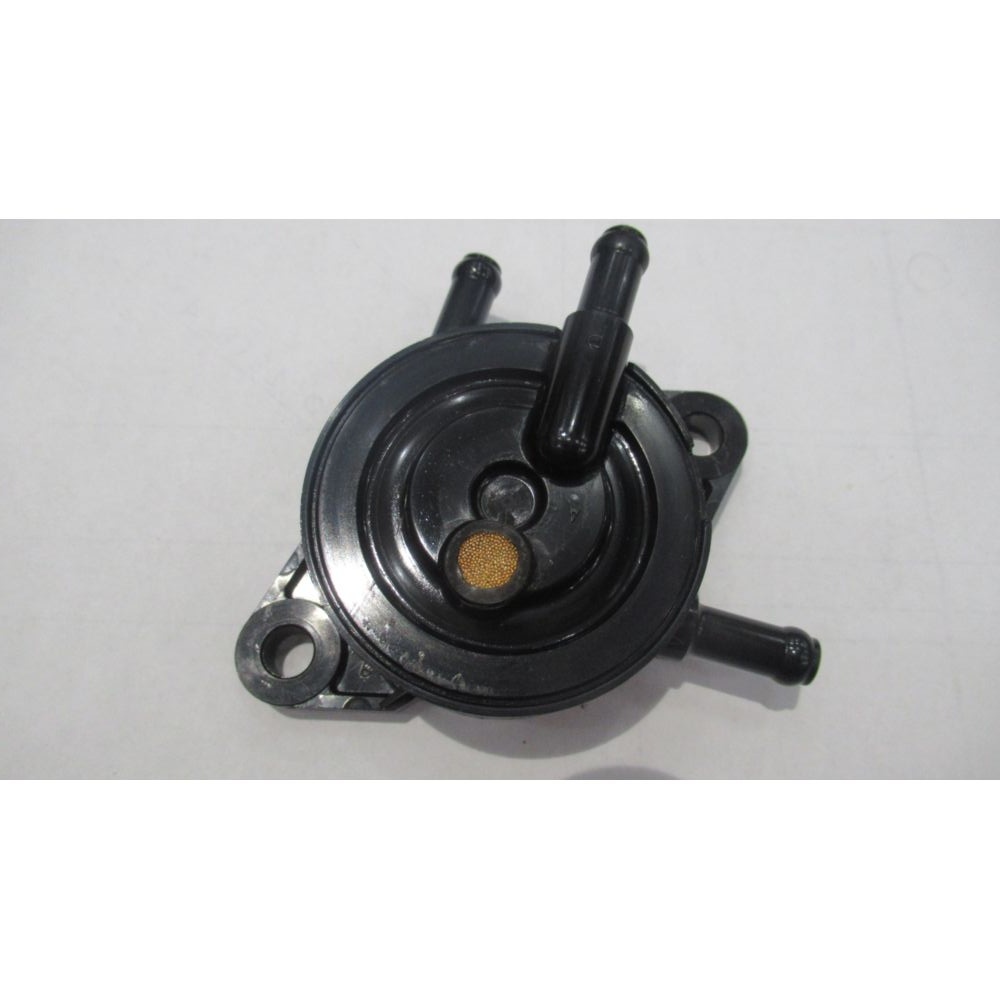

  • This kit uses a pulse fuel pump to transfer the fuel from the remote tank to the generator.
  • The internal hoses in this kit are genuine Gates barricade low perm hoses.
  • This item has not been validated to work with propane or dual fuel generators.
  • Product specifications subject to change without notice.

For safety reasons place generator and fuel tank on level ground when using and make sure fuel tank and hose are not near any heat source or open flame.

All product development and testing is done at our location in Brooksville Florida. This Item has been tested and verified to work properly at temperatures from 35 degrees Fahrenheit to over 100 degrees Fahrenheit.

If you have one of these generators but you are not comfortable installing the kit yourself, contact me for assistance.

This item has been tested and verified to fit US models, however this product will work on many different international models. All installation instructions refer to US models.
