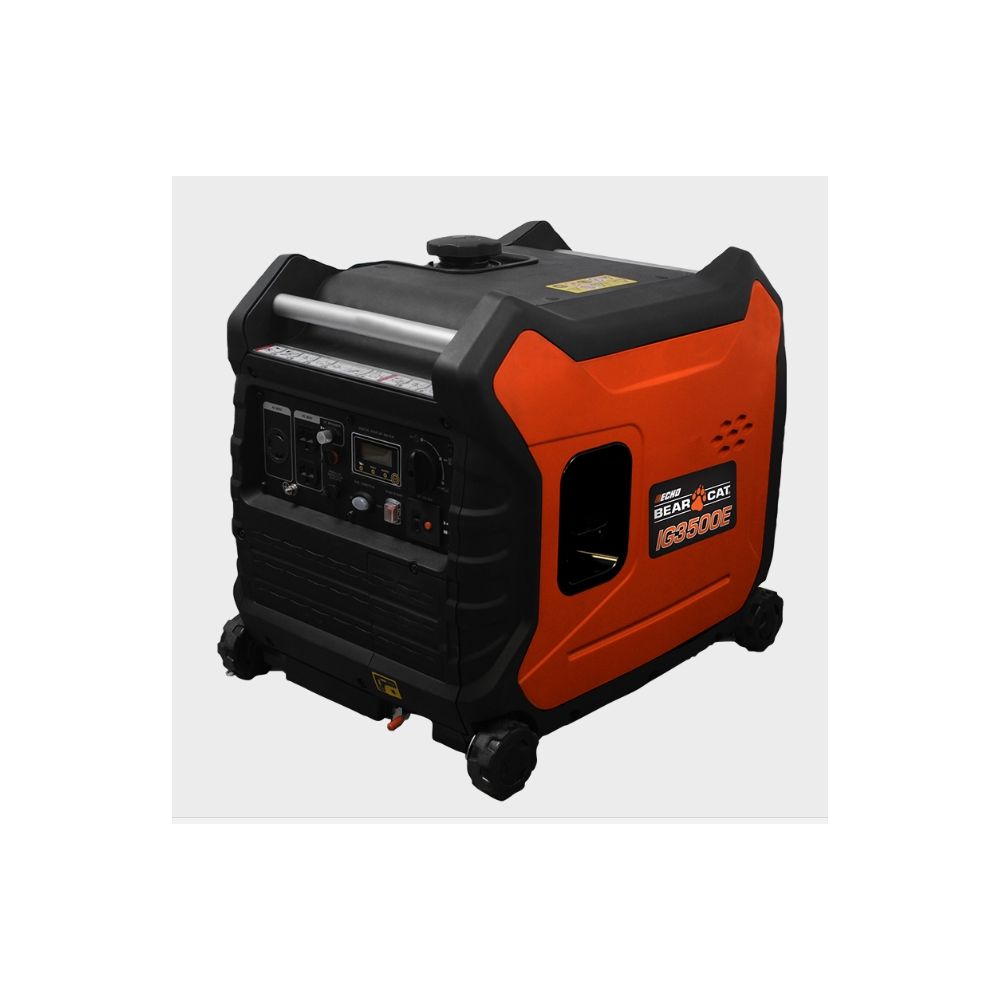

Echo BearCat 3500 Extended Run Time Fuel Kit

(1 customer review)


Includes free shipping to all 50 States

developed by pinellas

This kit will connect your Echo BearCat 3500 Generator to any size remote fuel tank you chose.

To ensure your complete satisfaction, please read the full product description below before placing your order.

12 in stock


Our Echo BearCat 3500 Extended Run Time Fuel Kit is the safest way to extend the run time of your generator.

Product Demonstration Video Installation Instruction Video Fine Tuning and Troubleshooting
Echo BearCat 3500 Owner’s Manual

All installation instructions for all Pinellas Power Products kits are in an easy to follow step by step video, on a (USB flash-drive) included in each kit. Please take a moment to watch the product videos above to see all the features this product has to offer.

Our Echo BearCat 3500 Extended Run Time Fuel kit was specifically developed to work correctly with the Predator 3500 it is not a through the cap, one size fits all or a gravity feed system. Our kits use an internal fuel pump included in the kit to transfer fuel so the remote tank does not need to be higher than the generator to work correctly. It is very important that you use only the components supplied in the kit, do not mix and match with locally improvised items due to the fact that they may not be 100% compatible and therefore inhibit performance of the kit.

You will never have to shut down your generator to refuel again.  Our Echo BearCat 3500 Extended Run Time Fuel kit is designed to alternate from one tank to the next while the generator is still running. Our kit will allow you to alternate between as many tanks of any size you choose. For example with a 6 gallon fuel tank you can run an Echo BearCat 3500 up to 13 hours at full load or 26 hours at half load before alternating to the next fuel tank.

You will never have to risk personal injury again pouring gasoline into a hot generator. With our AUXILIARY REMOTE FUEL TANK SYSTEM you can just switch to a remote fuel supply more safely at a distance of up to 10 feet away from this generator.

The fuel tank itself is not included in this kit due to the fact that it seems no two customers need the exact same size fuel tank. Here is a link that may help you find the proper sized fuel tank for your needs.

Moeller above deck fuel tanks »

Please click on the Product Details tab just below the photos for full technical details.

Please take a look at our other products for the Echo BearCat 3500.

Product Details

  • This Kit works with Echo BearCat 3500 inverter generators.
  • You can still run your generator off the stock fuel tank with this kit installed if you choose to do so.
  • Shipping weight 4 pounds.
  • Ships the same day it was ordered on orders received before 3:30 PM EST.
  • Quantity shown above the add to cart button is the exact quantity in stock right this second.
  • We ship world wide.
  • This kit will connect your generator to any size remote fuel tank you choose.

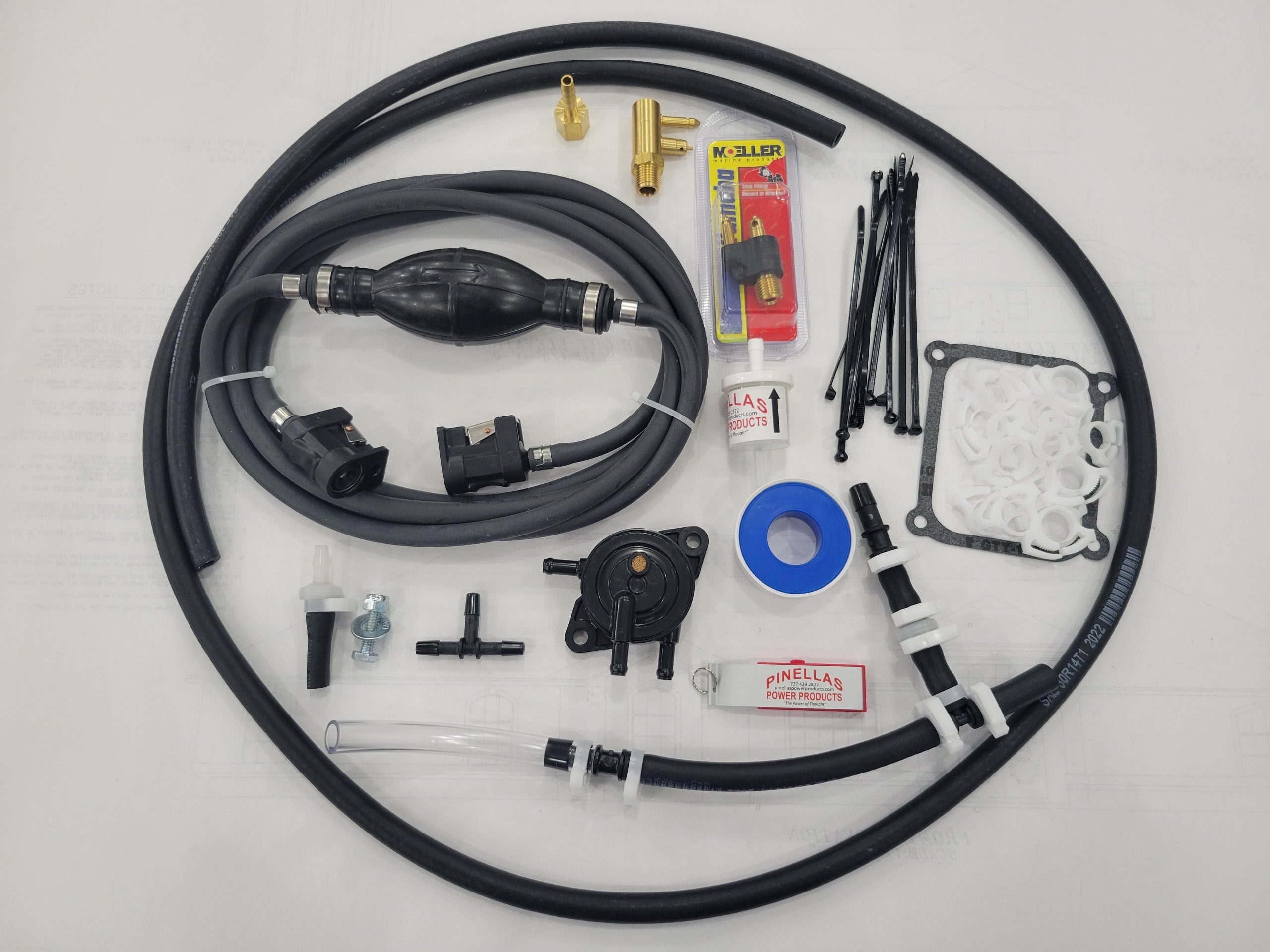

  • This kit includes everything needed except the fuel tank itself, kits contain additional items not shown in photo.
  • Tank sold separately due to the fact that many people need different size tanks.
  • This kit uses a Yamaha Marine fuel hose and quick disconnects.
  • The fuel pump included in this kit is genuine Mikuni.
  • The internal hoses in this kit are genuine Gates barricade low perm hoses.

For safety reasons place generator and fuel tank on level ground when using and make sure fuel tank and hose are not near any heat source or open flame.

If you have one of these generators but you are not comfortable installing the kit yourself, contact me for assistance.

This item has been tested and verified to fit US models, however this product will work on many different international models. All installation instructions refer to US models.

1 review for Echo BearCat 3500 Extended Run Time Fuel Kit

  1. Mark A Adams

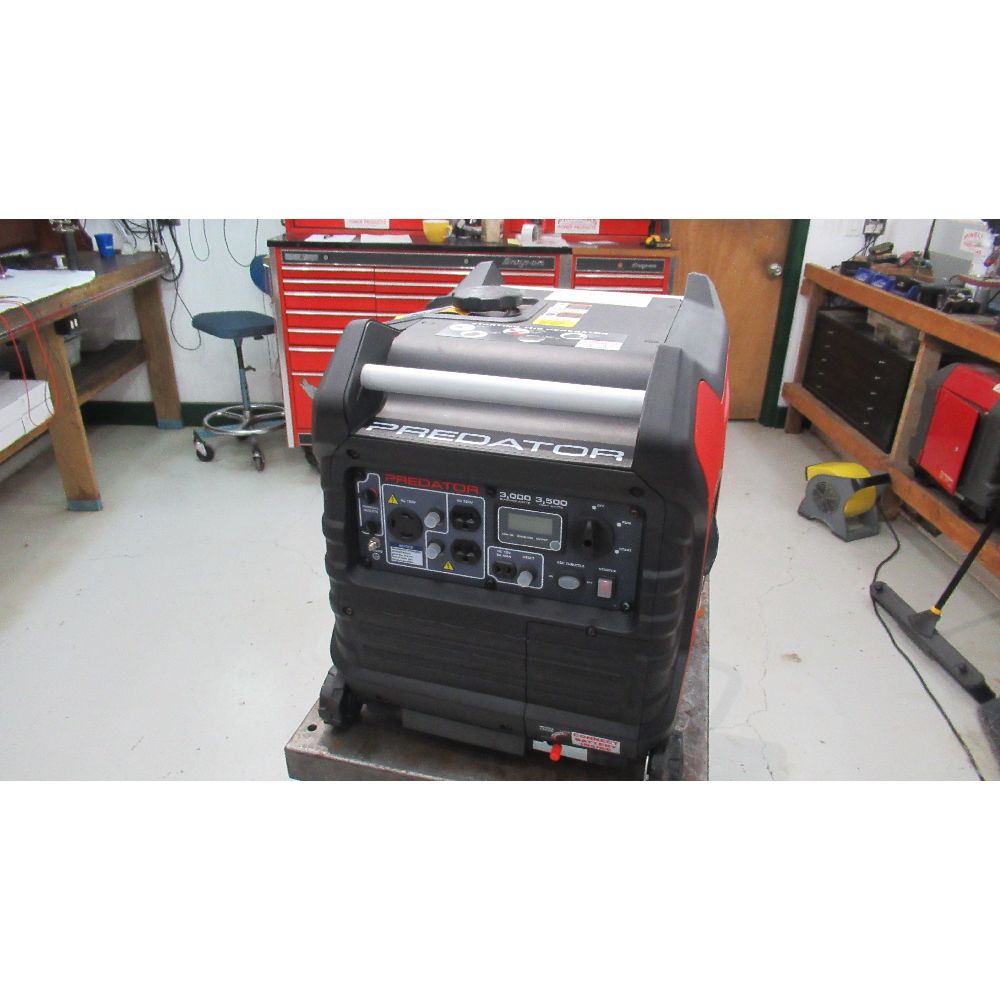

    I contacted Paul at Pinellas Power Products and asked if he ever installed the extended run fuel system on a Predator 3500, which he had not. I voiced my concern about all the videos I had watched on YT and how most were making their home made extended run tanks. 99% of which, were very dangerous. Most did not take into consideration that the unit has a vented tank and not a vented cap. In most of the videos, The major complaints were of fuel leaking all over causing a major fire / explosion hazard due to fuel leakage from the tank vent.

    I had already reviewed many of Paul’s videos on these installs and I had total confidence in his professional, super clean engineering, quality of components used, and his work. Being we live about 50 miles apart, We got together and he used my generator, which had about 15 hours and is new condition, as his test bed. As usual, Paul came through with a absolutely bullet proof, and most of all, safe kit. His video instructions make it easy even for the novice to install.

    Paul also installed the remote OFF system on my generator which is a major convenience when shutting the generator down in the evening and works fantastically.

    I am super happy with the systems that he installed. Both work perfectly.

    I could not be more adamant in stating that for the owners of the Predator 3500, Buy the kit for a safe extended fuel tank system for you to be able to keep your family safe. You will not regret it.
    Mark Adams
    Silver Springs, Florida

    I just learned that Mark Adams lost his fight with cancer and passed away in his sleep 0n 3/05/20.
    Paul Wolaver
