Firman 3200, 3300 & 3650 Extended Run Time Fuel Kit

(1 customer review)

$277.00

Includes free shipping to all 50 States

developed by pinellas

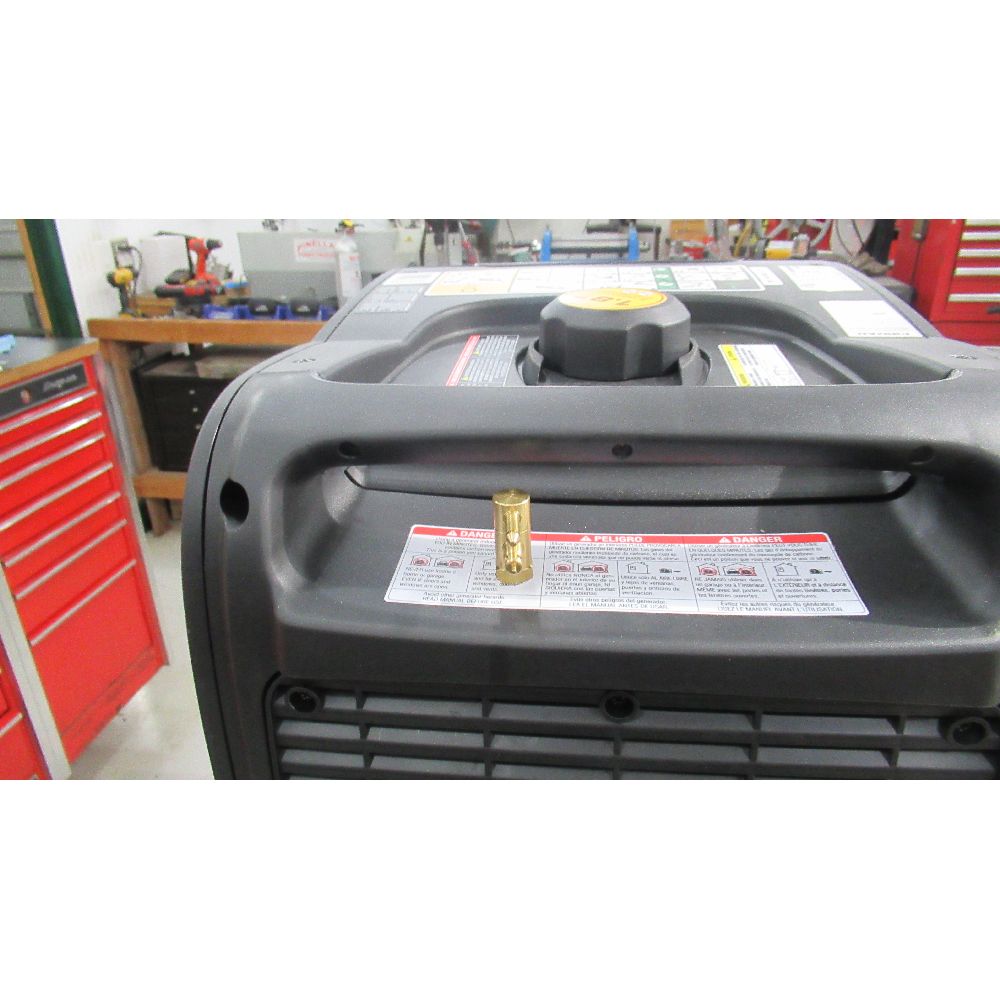

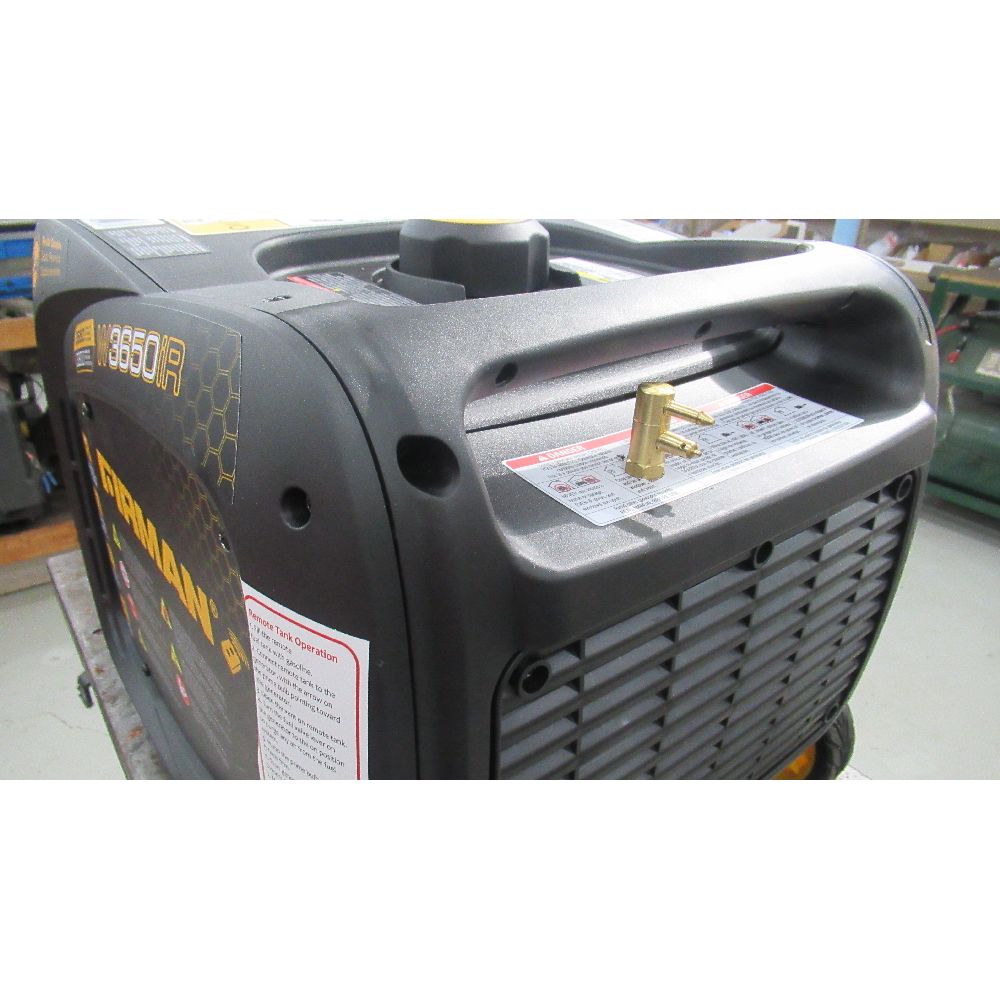

This kit will connect your Firman 3200, 3300 or 3650 watt Inverter Generator to any size remote fuel tank you chose.

To ensure your complete satisfaction, please read the full product description below before placing your order.

8 in stock

Description

Our Firman 3200, 3300 and 3650 watt Extended Run Time Fuel Kit is the safest way to extend the run time of your generator.

Why the Pinellas Power Products Extended Run Fuel System is better and safer than a through the cap system
Product Demonstration Video Installation Instruction Video Fine Tuning and Troubleshooting
Firman 3650 Owner’s Manual

All installation instructions for all Pinellas Power Products kits are in an easy to follow step by step video, on a (USB flash-drive) included in each kit. Please take a moment to watch the product videos above to see all the features this product has to offer.

Our Firman Extended Run Time Fuel kits were specifically developed to work correctly with the Firman and their sister, the Etrailer 3300 inverter Generators, which all share the same 193cc engine. It is not a through the cap, one size fits all, or a gravity feed system. Our kits use an internal fuel pump included in the kit to transfer fuel so the remote tank does not need to be higher than the generator to work correctly. Simply place the remote tank on the ground next to the generator then connect the fuel hose and you are all set. It is very important that you use only the components supplied in the kit, do not mix and match with locally improvised items due to the fact that they may not be 100% compatible and therefore inhibit performance of the kit. We do our best to select the highest quality components for our kits, for example we tested several different brands of prime ball hose before we chose the Yamaha hose due to the fact that it outlast the other brands and it stays more flexible in cold temperatures.

Convenience
You will never have to shut down your generator to refuel again. Our fuel transfer system is fully automatic and uses a vacuum type fuel pump so it can be used safely while unattended.  Our Firman Extended Run Time Fuel kit is designed to alternate from one tank to the next while the generator is still running. Our kit will allow you to alternate between as many tanks of any size you choose. Based on manufacturer fuel consumption claims with a 6 gallon fuel tank you can run a Firman up to 13 hours at full load or 26 hours at half load before alternating to the next fuel tank.

Safety
You will never have to risk personal injury again pouring gasoline into a hot generator. With our AUXILIARY REMOTE FUEL TANK SYSTEM you can just switch to a remote fuel supply more safely at a distance of up to 10 feet away from this generator.

Compatibility
This product has been validated for use on gasoline versions of this generator only. It is not recommended for use on propane or dual fuel versions of this generator.

We Recommend The fuel tank itself is not included in this kit due to the fact that it seems no two customers need the exact same size fuel tank. Below is a link that may help you find the proper sized fuel tank for your needs. Due to quality control issues with many of the different brands of fuel tanks, I recommend using the Flo N’ Go fuel caddy as a fuel tank. Please note, the fuel caddy will have to be standing upright when you are running the generator, but it can be laid flat for transporting or storage. If you wish to use this fuel caddy as a remote fuel tank you will need to get hose clamps and a 1/2 hose barb to 1/4 FIP adaptor as shown in the fuel caddy video. For more info on the quality control issues with the different brands of tanks please watch the fine tuning and trouble shooting video.

How to use A Fuel Caddy for a Remote Tank Moeller fuel tanks »

Please click on the Product Details tab just below the photos for full technical details.

Please take a look at our other products for the Firman 3200, 3300 and 3650 watt Inverter Generators.

Product Details

  • This Kit works with Firman 3200, 3300, and 3650 inverter generators.
  • You can still run your generator off the stock fuel tank with this kit installed if you choose to do so.
  • Shipping weight 4 pounds.
  • Ships the same day it was ordered on orders received before 3:30 PM EST.
  • Quantity shown above the add to cart button is the exact quantity in stock right this second.
  • We ship world wide.
  • This kit will connect your generator to any size remote fuel tank you choose.

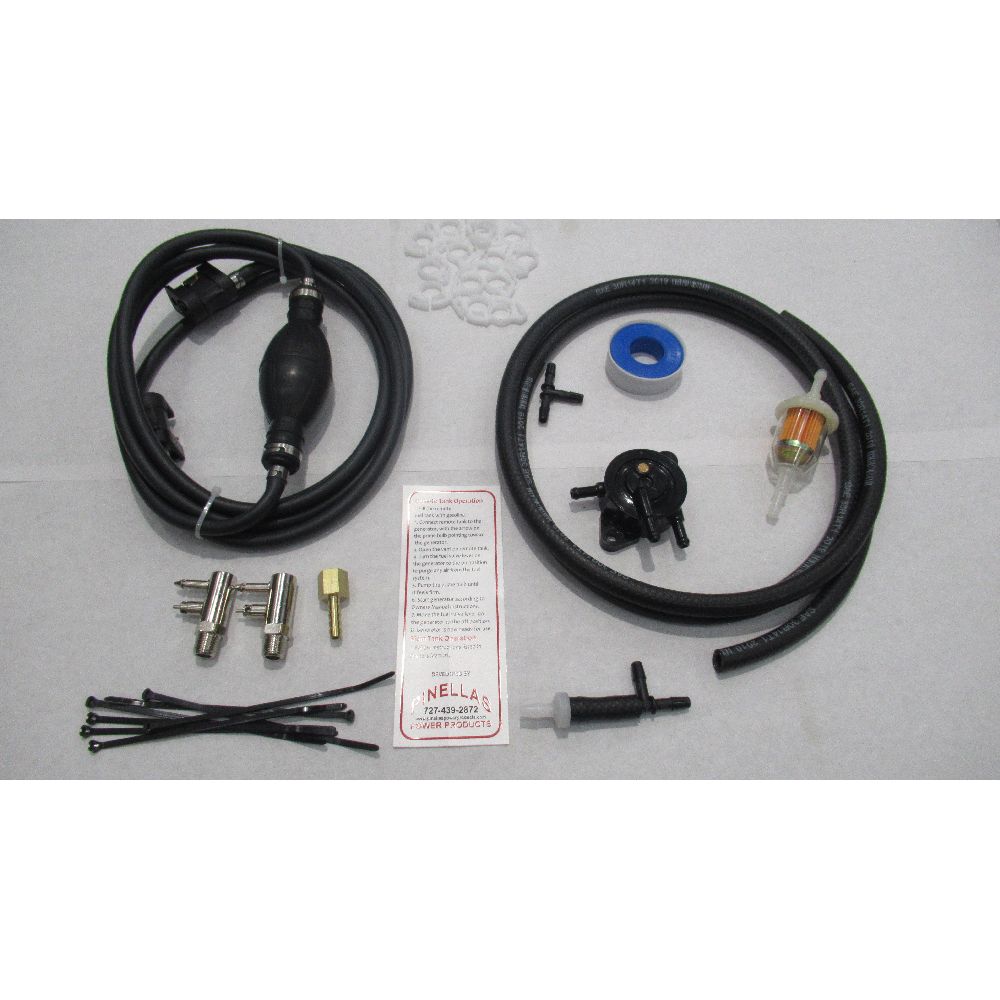

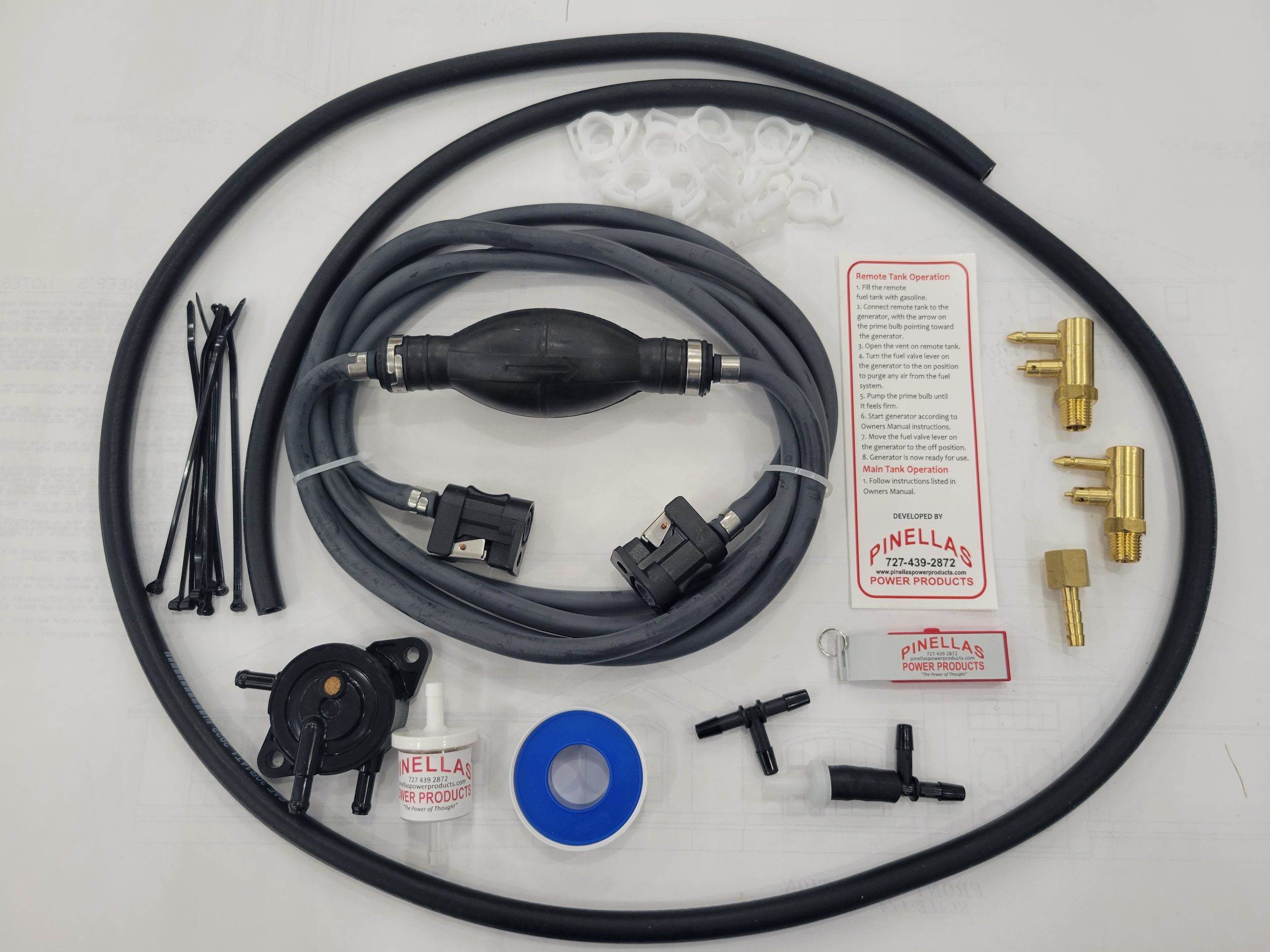

  • This kit includes everything needed except the fuel tank itself, kits contain additional items not shown in photo.
  • Tank sold separately due to the fact that many people need different size tanks.
  • This kit uses a Yamaha style Marine fuel hose and quick disconnects.

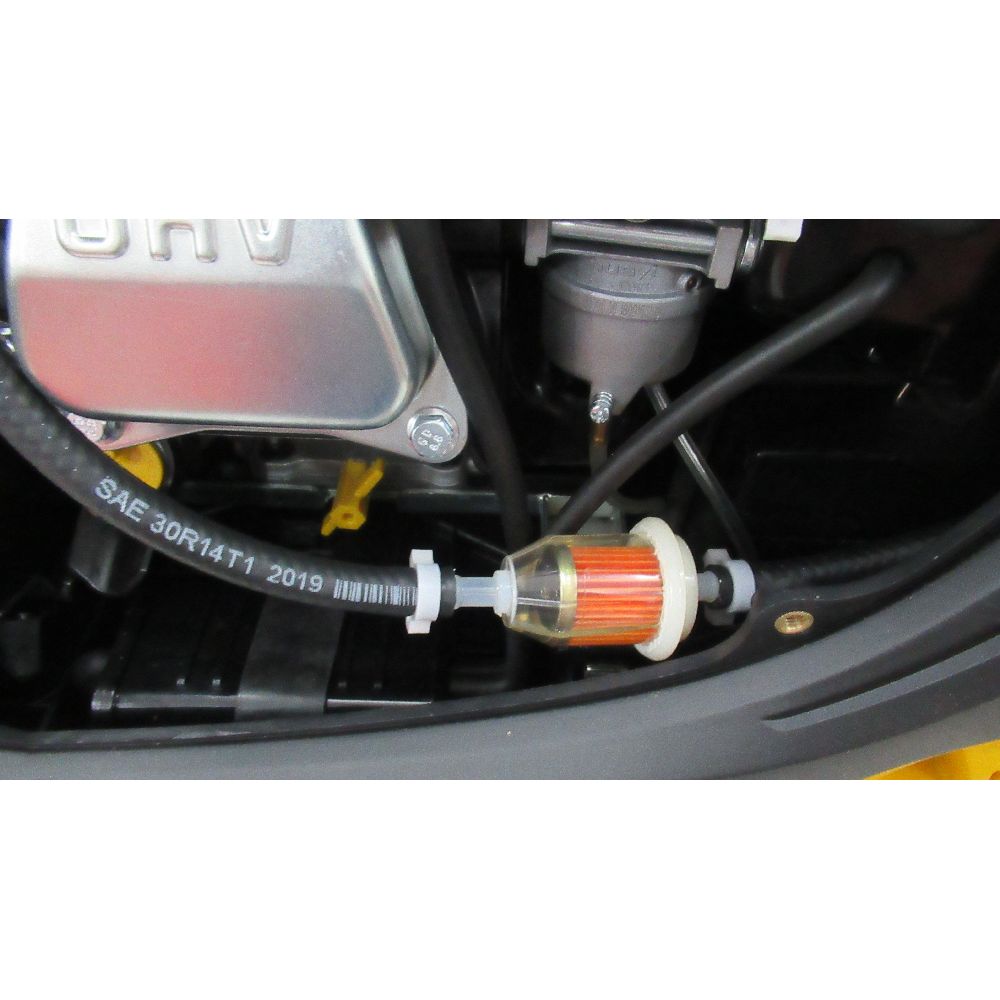

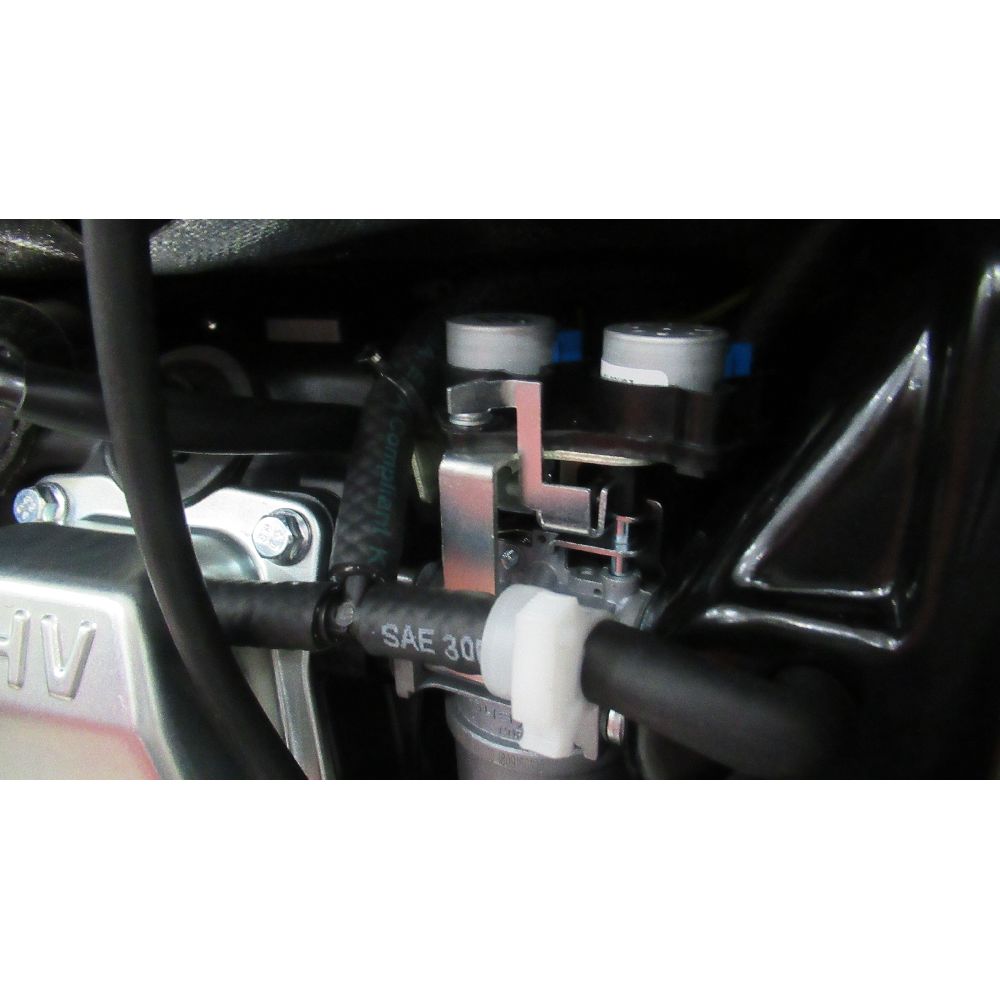

  • This kit uses a pulse fuel pump to transfer the fuel from the remote tank to the generator.
  • The internal hoses in this kit are genuine Gates barricade low perm hoses.
  • This item has not been validated to work with propane or dual fuel generators.
  • Product specifications subject to change without notice.

For safety reasons place generator and fuel tank on level ground when using and make sure fuel tank and hose are not near any heat source or open flame.

All product development and testing is done at our location in Brooksville Florida. This Item has been tested and verified to work properly at temperatures from 35 degrees Fahrenheit to over 100 degrees Fahrenheit.

If you have one of these generators but you are not comfortable installing the kit yourself, contact me for assistance.

This item has been tested and verified to fit US models, however this product will work on many different international models. All installation instructions refer to US models.

1 review for Firman 3200, 3300 & 3650 Extended Run Time Fuel Kit

  1. Mike Pizzolatto (verified owner)

    I bought a pair of Firman 3200 generators and a parallel kit to run our 5th wheel RV while boon docking in September of 2019. In early October I contacted Paul Wolaver with Pinellas Power Products to see if he made a kit for the Firman generators. http://www.pinellaspowerproducts.com. Paul makes extended run kits for Hondas, Champion, HF Predator and several other small inverter generators. Paul said he had not heard of the Firman series generator and asked if I could send he some pictures. I did. On November 8th, 2019 Paul advised me that he had purchased a Firman 3600 generator and once it arrived it would take him about 2-3 weeks to develop a extended run kit for the firman. After about a month I checked his website and discovered the kit for the Firman had been developed. The kit for the Firman 3600 will also fit the Firman 3200. Only difference in a smaller engine in the 3200’s. I received one extended run kit for Christmas and then purchased a second kit for my other generator. I installed one last 12/29/19 and then the other kit was installed on 1/4/20. I had ordered two Moeller 6 gallon marine tank which came in on 11/4/20. In the video I posted you can see the two generators sitting in may shed and each connected to a Moeller 6 gallon marine tank. Both are running and are siphoning gas up to the generators. These kits are true extended run kits which are not gravity feed systems. They are pump systems. Took a little over 2 hours to install the first kit and a little less than 2 hours to install the second kit. Both do exactly what is advertised. I would like to Thank Paul Wolaver with Pinellas Power Products for not only developing a kit for the Firman generators but for purchasing a Firman generator first. With the extended run kits I can run both generators for about 20 hours at 3/4 load so you never have to fill up a hot generator or stop the generator to refuel, you just refill the marine fuel tanks which are 10-12 ft away from the generators. Much safer.
    My video review of this product
