Predator 3500 Extended Run Time Fuel Kit

(4 customer reviews)


Includes free shipping to all 50 States

developed by pinellas

This kit will connect your Predator 3500 Generator to any size remote fuel tank you chose.

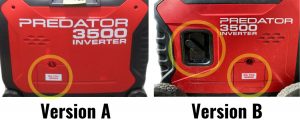

To ensure your complete satisfaction, please read the full product description below before placing your order. Be sure to indicate which version of Generator you have, they are not interchangeable.


Our Predator 3500 Extended Run Time Fuel Kit is the safest way to extend the run time of your generator.

Why the Pinellas Power Products Extended Run Fuel System is better and safer than a through the cap system
Product Demonstration Video Version A Installation Instruction Video Version A Product Demonstration Video Version B Installation Instruction Video Version B Fine Tuning and Troubleshooting
Predator 3500 Owner’s Manual Version A Predator 3500 Owner’s Manual Version B

All installation instructions for all Pinellas Power Products kits are in an easy to follow step by step video, on a (USB flash-drive) included in each kit. Please take a moment to watch the product videos above to see all the features this product has to offer.

Our Predator 3500 Extended Run Time Fuel kit was specifically developed to work correctly with the Predator 3500 and its sisters, the Powerhorse 3500 and Echo BearCat 3500. It is not a through the cap, one size fits all, or a gravity feed system. Our kits use an internal fuel pump included in the kit to transfer fuel so the remote tank does not need to be higher than the generator to work correctly. Simply place the remote tank on the ground next to the generator then connect the fuel hose and you are all set. It is very important that you use only the components supplied in the kit, do not mix and match with locally improvised items due to the fact that they may not be 100% compatible and therefore inhibit performance of the kit. We do our best to select the highest quality components for our kits, for example we tested several different brands of prime ball hose before we chose the Yamaha hose due to the fact that it outlast the other brands and it stays more flexible in cold temperatures.

You will never have to shut down your generator to refuel again.  Our Predator 3500 Extended Run Time Fuel kit is designed to alternate from one tank to the next while the generator is still running. Our kit will allow you to alternate between as many tanks of any size you choose. Based on manufacturer fuel consumption claims with a 6 gallon fuel tank you can run a Predator 3500 up to 13 hours at full load or 26 hours at half load before alternating to the next fuel tank.

You will never have to risk personal injury again pouring gasoline into a hot generator. With our AUXILIARY REMOTE FUEL TANK SYSTEM you can just switch to a remote fuel supply more safely at a distance of up to 10 feet away from this generator.

This product has been validated for use on gasoline versions of this generator only. It is not recommended for use on propane or dual fuel versions of this generator.

We Recommend The fuel tank itself is not included in this kit due to the fact that it seems no two customers need the exact same size fuel tank. Below is a link that may help you find the proper sized fuel tank for your needs. Due to quality control issues with many of the different brands of fuel tanks, I recommend using the Flo N’ Go fuel caddy as a fuel tank. Please note, the fuel caddy will have to be standing upright when you are running the generator, but it can be laid flat for transporting or storage. If you wish to use this fuel caddy as a remote fuel tank you will need to get hose clamps and a 1/2 hose barb to 1/4 FIP adaptor as shown in the fuel caddy video. For more info on the quality control issues with the different brands of tanks please watch the fine tuning and trouble shooting video.

How to use A Fuel Caddy for a Remote Tank Moeller fuel tanks »

Please click on the Product Details tab just below the photos for full technical details.

Please take a look at our other products for the Predator 3500.

Product Details

  • This Kit works with Predator 3500 inverter generators.
  • You can still run your generator off the stock fuel tank with this kit installed if you choose to do so.
  • Shipping weight 4 pounds.
  • Ships the same day it was ordered on orders received before 3:30 PM EST.
  • Quantity shown above the add to cart button is the exact quantity in stock right this second.
  • We ship world wide.
  • This kit will connect your generator to any size remote fuel tank you choose.

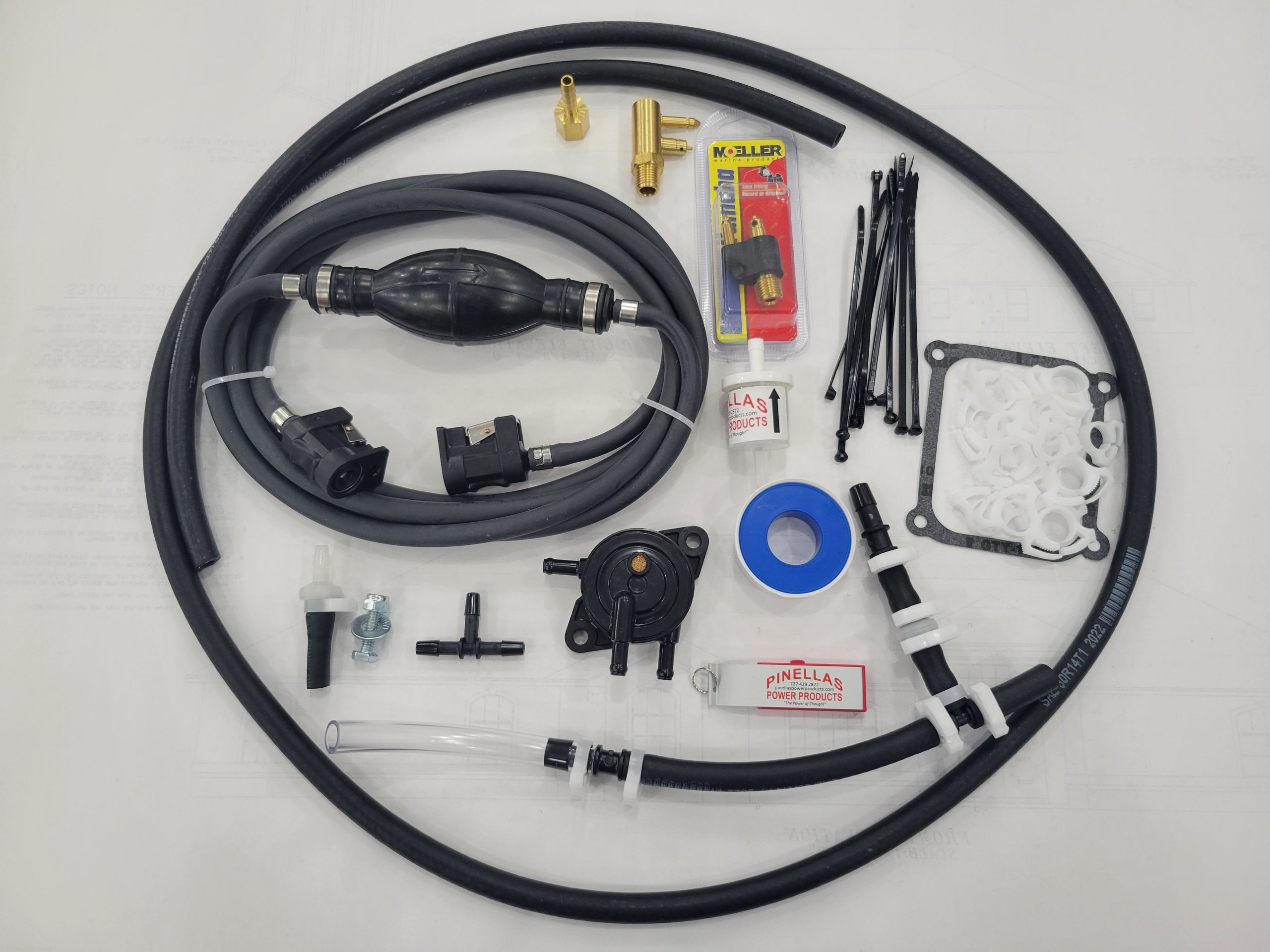

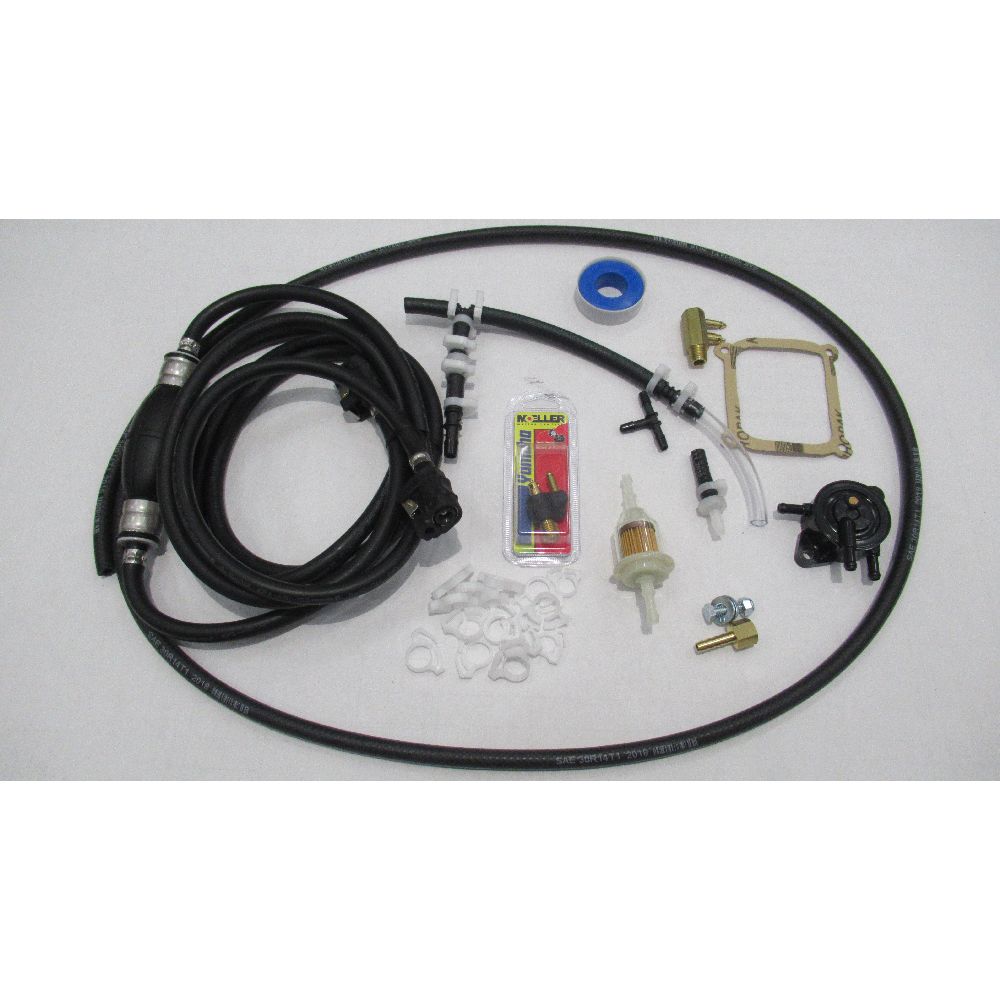

  • This kit includes everything needed except the fuel tank itself, kits contain additional items not shown in photo.
  • Tank sold separately due to the fact that many people need different size tanks.
  • This kit uses a Yamaha style Marine fuel hose and quick disconnects.
  • This kit uses a pulse fuel pump to transfer the fuel from the remote tank to the generator.
  • The internal hoses in this kit are genuine Gates barricade low perm hoses.
  • This item has not been validated to work with propane or dual fuel generators.
  • Product specifications subject to change without notice.

For safety reasons place generator and fuel tank on level ground when using and make sure fuel tank and hose are not near any heat source or open flame.

All product development and testing is done at our location in Brooksville Florida. This Item has been tested and verified to work properly at temperatures from 35 degrees Fahrenheit to over 100 degrees Fahrenheit.

If you have one of these generators but you are not comfortable installing the kit yourself, contact me for assistance.

This item has been tested and verified to fit US models, however this product will work on many different international models. All installation instructions refer to US models.

4 reviews for Predator 3500 Extended Run Time Fuel Kit

  1. Mark A Adams

    I contacted Paul at Pinellas Power Products and asked if he ever installed the extended run fuel system on a Predator 3500, which he had not. I voiced my concern about all the videos I had watched on YT and how most were making their home made extended run tanks. 99% of which, were very dangerous. Most did not take into consideration that the unit has a vented tank and not a vented cap. In most of the videos, The major complaints were of fuel leaking all over causing a major fire / explosion hazard due to fuel leakage from the tank vent.

    I had already reviewed many of Paul’s videos on these installs and I had total confidence in his professional, super clean engineering, quality of components used, and his work. Being we live about 50 miles apart, We got together and he used my generator, which had about 15 hours and is new condition, as his test bed. As usual, Paul came through with a absolutely bullet proof, and most of all, safe kit. His video instructions make it easy even for the novice to install.

    Paul also installed the remote OFF system on my generator which is a major convenience when shutting the generator down in the evening and works fantastically.

    I am super happy with the systems that he installed. Both work perfectly.

    I could not be more adamant in stating that for the owners of the Predator 3500, Buy the kit for a safe extended fuel tank system for you to be able to keep your family safe. You will not regret it.
    Mark Adams
    Silver Springs, Florida

    I just learned that Mark Adams lost his fight with cancer and passed away in his sleep 0n 3/05/20.
    Paul Wolaver

  2. Pat Patterson (verified owner)

    Great full kit for my Predator 3500! Followed the video included and it was a Breeze! Works great! Recomeded!

  3. John Buss (verified owner)

    I just installed the kit for the Predator 3500 extended run kit and I was very impressed with the video and step by step instructions provided. I believe the price was well worth it IMO. I would recommend this product to anyone.

  4. Robert Kayat (verified owner)

    The installation was easy and it works great. On the first use I had an issue with my carb flooding so I called Paul and within minutes he had a resolution. It was my fault since I removed the charcoal canister and plugged the ports. I pulled both plugs off and now it runs flawlessly! Thank you Paul for your help!
